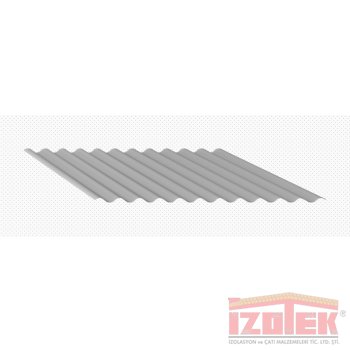

18/838 Sinus Corrugated Sheet

18/838 Sinus Corrugated Sheet
Assan Panel offers 18/838 sinus profiled sheet for walls, roofs and curved roofs. It enables to apply them not only as roofing and facade coverings, but also as constructional load-bearing profiles for many types of buildings. Net coverage width is 838 mm.

Net Coverage Width : 838 mm. (Tolerance: ±3 mm.)

Sheet Length : Min. 1000 mm.-Max.12.000 mm.

Application: Roof and Wall Claddings

Production Plant : Istanbul

Metal Properties : Prepainted Galvanized Steel, Galvanized Steel
Assan Aluminium product high condition, AW 3000 Series Aluminium Alloy

Sheet Thickness : Min.0.50 mm.-Max.0.80 mm. Prepainted Galvanized Steel/Galvanized Steel; Min.0.40 mm.-Max.0.80 mm. Aluminium


Assan Panel offers 18/838 sinus profiled sheet for walls, roofs and curved roofs. It enables to apply them not only as roofing and facade coverings, but also as constructional load-bearing profiles for many types of buildings. Net coverage width is 838 mm.
