Swell-Flex 2007 - Expanding Waterstop

Swell-Flex 2007 - Expanding Waterstop
SWELL-FLEX is an active sodium bentonite/butyl rubber-based waterstop. It fills all the cracks, pores and capilleries on the concrete by expanding upon contact with water, and waterproofs concrete joints.
Description
SWELL-FLEX is an active sodium bentonite/butyl rubber-based waterstop. It fills all the cracks, pores and capilleries on the concrete by expanding upon contact with water, and waterproofs concrete joints.

Usage Areas

Swimming pools,

Foundations,

Shear concrete,

Tunnels,

Manholes,

Retaining walls,

Garages,

Water storage tanks,

Old and new concrete joints,

Sewage systems,

Underground pipe and cable inlets,

Water purification facilities.

Advantages

•      Very easy installation.

•      Offers easy application even with great amounts of rebar.

    •      To connect seams it is sufficient to bring them together side by side and press.

•      One person can install up to 130 meters per hour.

•      Packaged as 7 meter rolls so that one person can easily apply it alone.

Application

•       Roll out required amount of SWELL-FLEX.

•       Press it onto concrete. For best adherence in vertical and overhead applications, press it firmly for at least 15 seconds.

•       Apply primer when necessary.

•       Place seams side by side or end to end; do not overlap.

•       Make sure waterstop covers all parts of the surface, especially if the surface is not uniform.

•       Remove silicon paper and pour concrete carefully.


Caution

•       The length between SWELL-FLEX and the outer surface of the concrete must be 5 cm minimum.

•       It is not suitable for the joints of precast building elements. Use our unique Bibaflex for this type o applications.

•       SWELL-FLEX should be protected from humidity and rain prior to application.

•       Upon contact with excessively salty water SWELL-FLEX may not expand sufficiently.

•       SWELL-FLEX can be used underwater up to a depth of 12 meters.

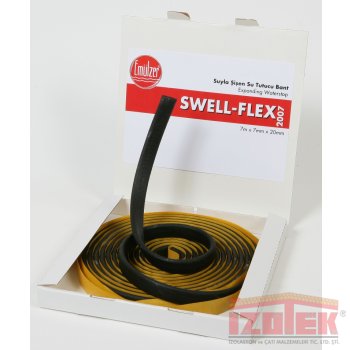

Packaging

7 meter roll in Cardboard box
